Flat convex cylindrical mirror

A flat convex cylindrical mirror that focuses light in only one direction, similar in appearance to a flat convex lens. It is a part of a cylinder and can replace a spherical surface. A cylindrical lens can convert point light into linear light and can be used as a linear laser generator to generate laser light. This type of lens magnifies at the same size, so it can stretch and image, so it can focus light into a slit or concentrate light into a linear scanning detector. Due to strict tolerances in tilt and wedge shape, high-quality imaging lenses will produce straight lines or better imaging compared to standard cylindrical lenses.

Add to shopping cart

DETAILS

Flat convex cylindrical mirror

A flat convex cylindrical mirror is designed for applications that require one-dimensional convergence of light sources, similar to the function of a spherical lens. However, the effect of a spherical lens on incident light is symmetrical in both directions, while a cylindrical lens only has one direction of action on incident light. The substrate materials include N-BK7 glass and ultraviolet fused silica, and all materials can choose not to be coated or coated with Anti-reflective coating.

Index
material	BK7 and UV fused silica
Focal length tolerance	±2% @589nm
decentration	≤3′
Outer diameter tolerance	+0/-0.1mm
Effective aperture	＞90% Central area
Center thickness tolerance	±0.1mm
Edge thickness	3.0mm，Standard value
finish	40/20
Face shape (within the effective aperture)	≤ λ/2 Irregularity @ 632.8nm（y-axis）
Face shape (within the effective aperture)	≤ λ/4/cm Irregularity @ 632.8nm（x-axis）
chamfer	0-0.8mm ×45°±15°

Specifications

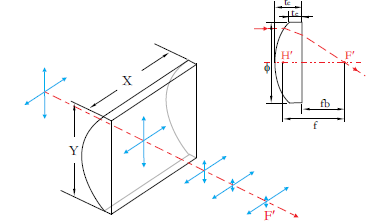

Part No	X	Y	EFL	R	Tc	Te	Material
Part No	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	Material
CLPX-254-127-R065-BK7	25.4	12.7	12.7	6.57	7.9	3	BK7
CLPX-508-254-R197-BK7	50.8	25.4	38.1	19.7	7.64	3	BK7
CLPX-508-254-R259-BK7	50.8	25.4	50.2	25.95	6.32	3	BK7
CLPX-508-254-R325-BK7	50.8	25.4	62.9	32.52	5.58	3	BK7
CLPX-508-254-R390-BK7	50.8	25.4	75.6	39.09	5.12	3	BK7
CLPX-508-508-R517-BK7	50.8	50.8	100	51.7	9.67	3	BK7
CLPX-508-508-R775-BK7	50.8	50.8	150	77.55	7.28	3	BK7
CLPX-508-508-R1034-BK7	50.8	50.8	200	103.4	6.17	3	BK7
CLPX-508-508-R1551-BK7	50.8	50.8	300	155.1	5.09	3	BK7
CLPX-508-254-R239-UVFS	50.8	25.4	50.2	23.09	6.81	3	UVFS
CLPX-508-254-R460-UVFS	50.8	25.4	100	46	4.79	3	UVFS
CLPX-508-508-R690-UVFS	50.8	50.8	150	69	7.85	3	UVFS
CLPX-508-508-R920-UVFS	50.8	50.8	200	92	6.58	3	UVFS
CLPX-508-508-R1380-UVFS	50.8	50.8	300	138	5.36	3	UVFS
Other materials, outer diameter, and focal length products can be customized by Xinye Technology according to needs
